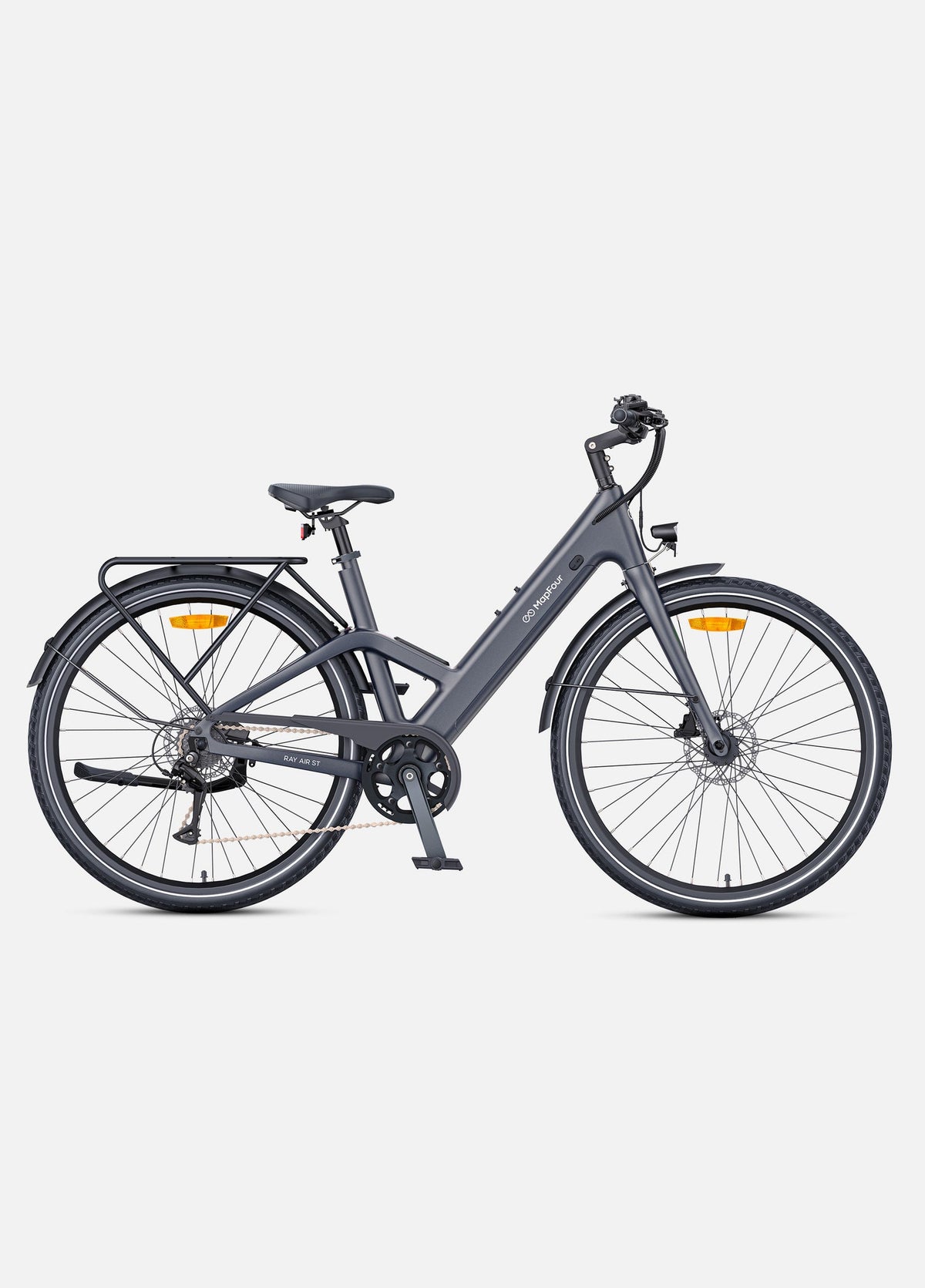

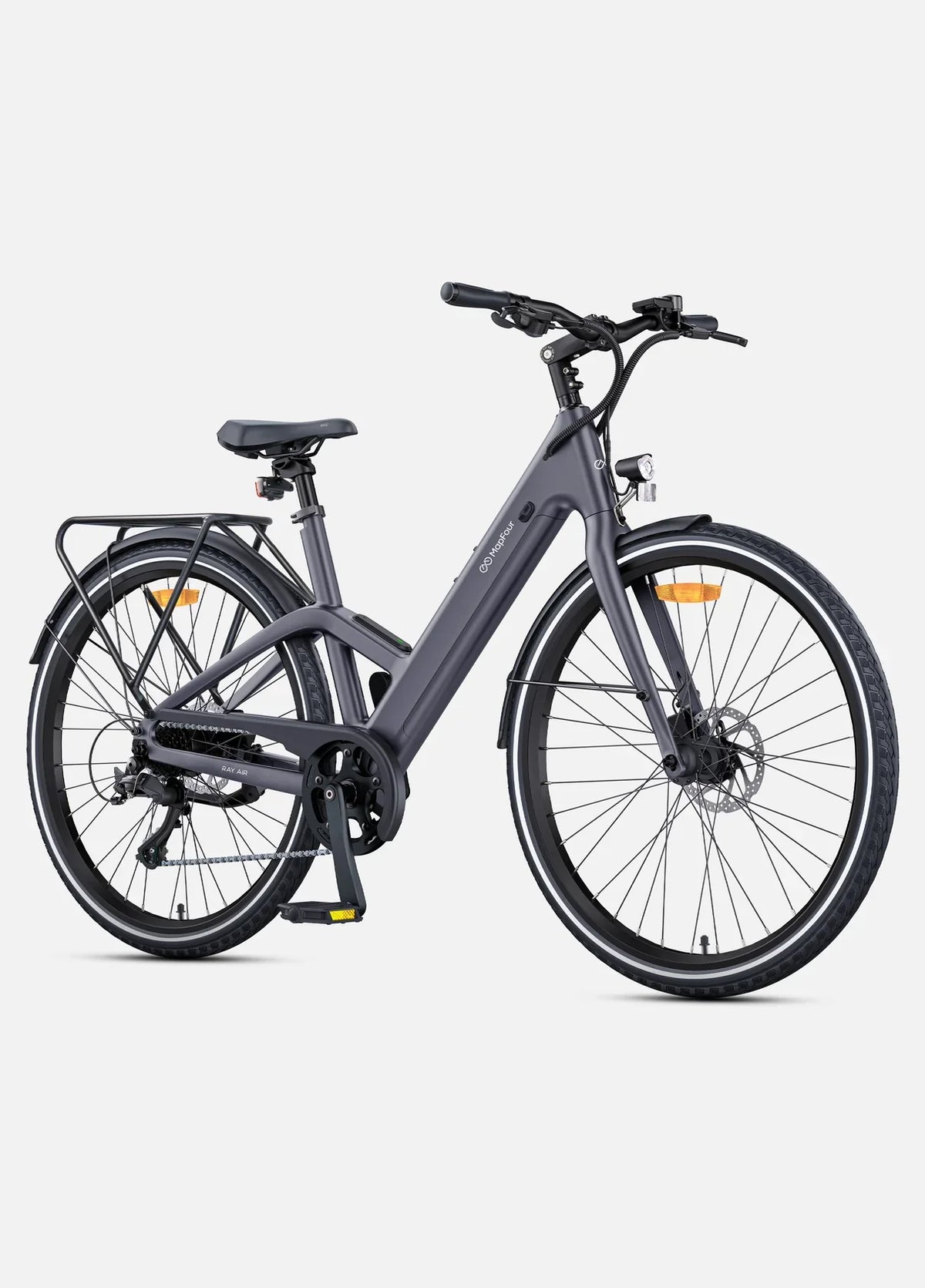

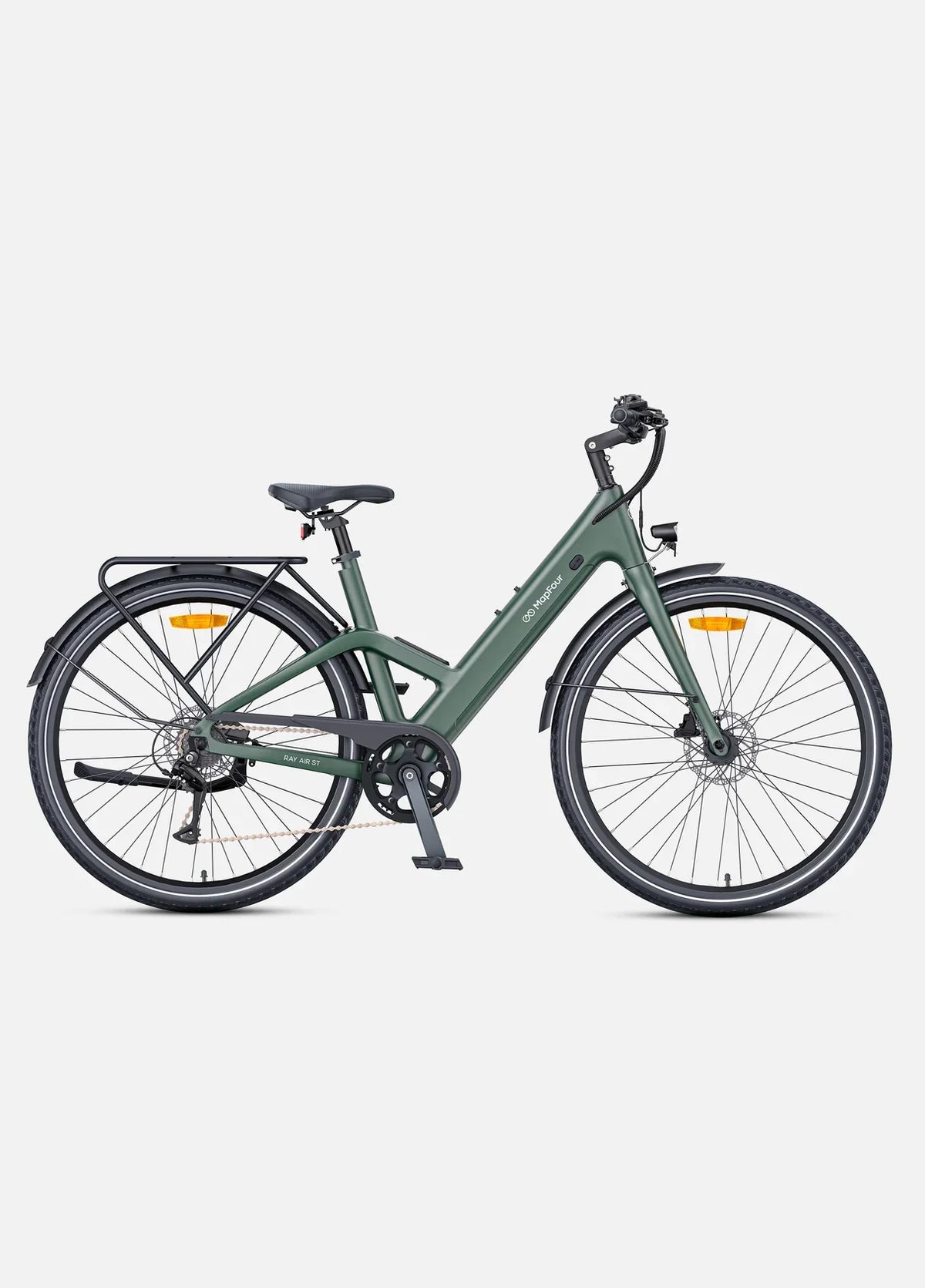

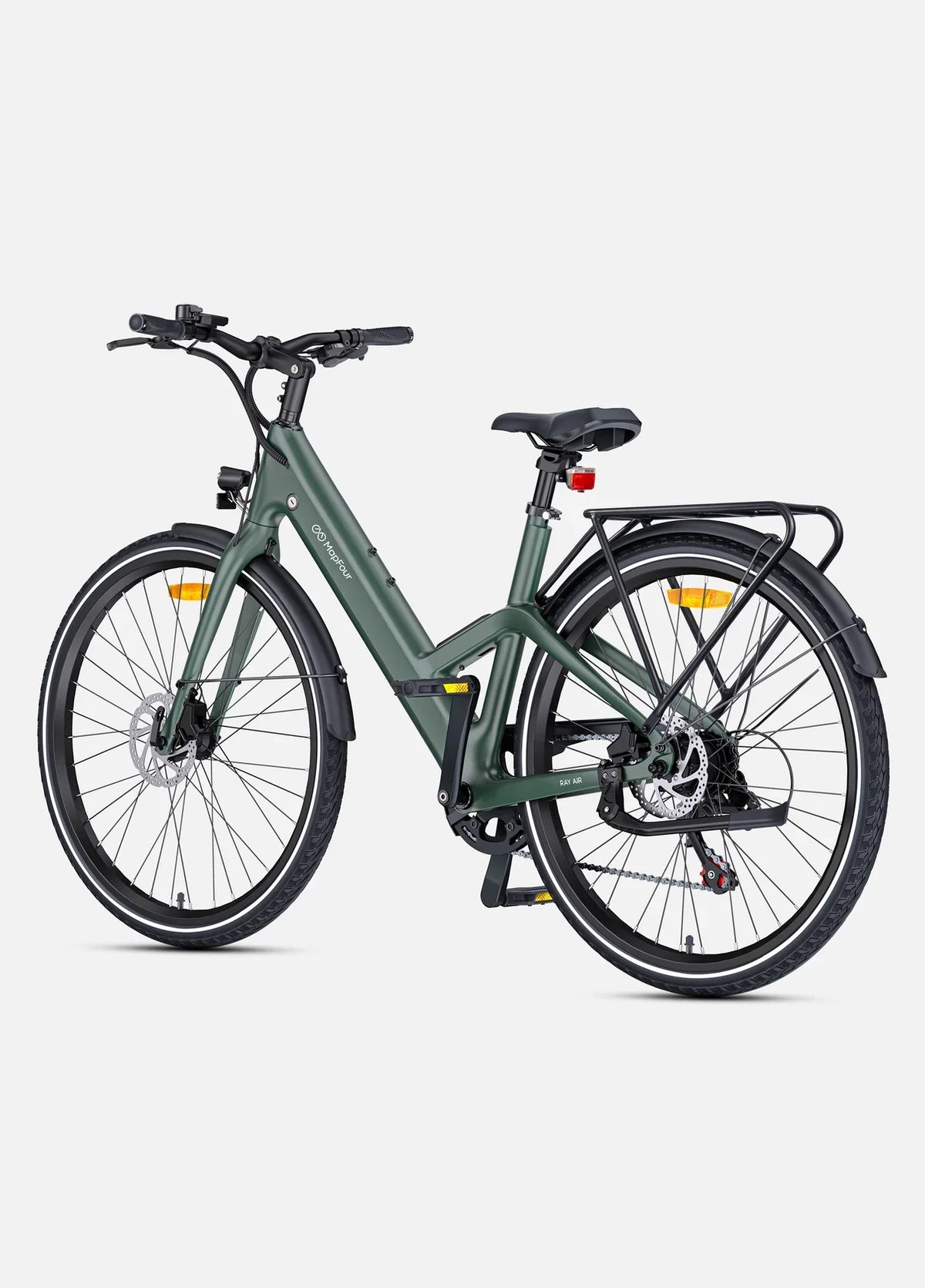

MapFour Ray Air ST

Enjoy easier starts and stops in town with a low step-through frame that makes getting on and off simple. The carbon-fibre frame keeps the bike light at approximately 17.5 kg, including its battery, for agile handling and easier carrying.

Its 250 W MIVICE M070 rear hub motor provides pedal assistance up to 25 km/h. A torque sensor responds to your pedalling force, giving you natural-feeling support on daily rides and city errands.

• Removable battery: The 36 V / 10 Ah Samsung lithium-ion battery can be removed for charging and offers up to 100 km of range at PAS level 1.
• Comfortable fit: The step-through carbon frame suits riders from 155 cm to 190 cm tall, with a maximum load of 120 kg.
• Easy gear changes: Shimano ACERA 8-speed gearing gives you a choice of gears as your route changes.
• Hydraulic braking: Tektro disc brakes with 160 mm rotors at the front and rear provide controlled stopping.
• Ready for the road: 700 × 38C spoked tyres, an aluminium fork, front and rear mudguards, and a kickstand support everyday riding.
• Useful onboard details: Check ride information on the TFT colour display, while the integrated solar rear light adds visibility. The bike is prepared for GPS tracking and motion detection.
• Included: You receive the e-bike, Samsung battery, 48 V / 2 Ah charger, pedals, assembly tools, and user manual.

Set it up for a commute or a relaxed ride across town, with the low frame making frequent stops easier to manage.
